High Efficiency & Reasonable Structure Design

•       Gearbox structurally separates from the central/rear cooler and the lubrication system

o   Compact size design with noise enclosure for low noise operation (optional)

•       100% oil-free clean compressed air

o   Oil lubrication and air compression components are structurally separated

•       High performance and safety

o   The latest design technology ensures efficient performance

o   Employ the best quality components

o   115% Overspeed tests verify the reliability

•       Quick installation

o   Complete assembly design including after cooling and other parts, simplified structure

Easy and Convenient Maintenance

•       The gearbox, bearing, air seal and oil seal are all in one horizontal division structure

•       The cooler core adopts straight pipe structure, which makes maintenance quick and easy

•       Modular design, simple maintenance, dramatically reduces maintenance time and cost

Excellent durability

•       All compressor components are subject to strict quality control and testing to ensure product durability

•       Strict quality assurance system ensures the safety and durability of the whole machine

Standard & Optional Configuration

Standard Configuration

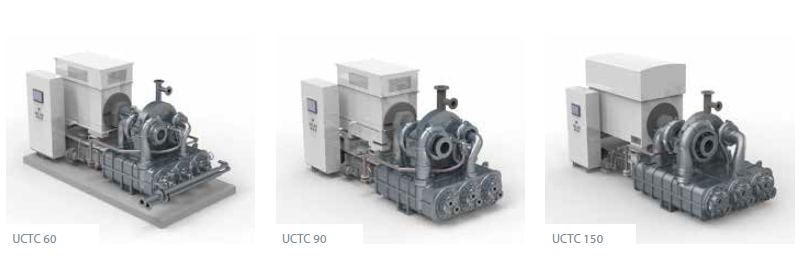

•       High-efficiency UCTC series centrifugal air compressor designed with the most advanced fluid engineering

•       Inlet filter

•       Intercooler, rear cooler, oil cooler

•       Vibration monitoring at all levels

•       High-efficiency motor

•       Automatic condensate water drainage system

•       PLC control panel with a 9.7 "touch screen

•       Lubrication system

•       Inlet guide vane (IGV)

•       Blowing off valve (BOV) & silencer

•       Constant pressure control and load/unload pressure control

Optional Configuration

•       Double oil filter

•       Motor start-up control panel

•       Inlet filtration pressure differential monitoring

•       Intelligent group control

•       Human-machine interface monitoring system

•       Engine or steam turbine drive

•       Assembly system

•       Wired & Wireless monitoring

•       Remote control monitoring

Components

Technical Parameters
