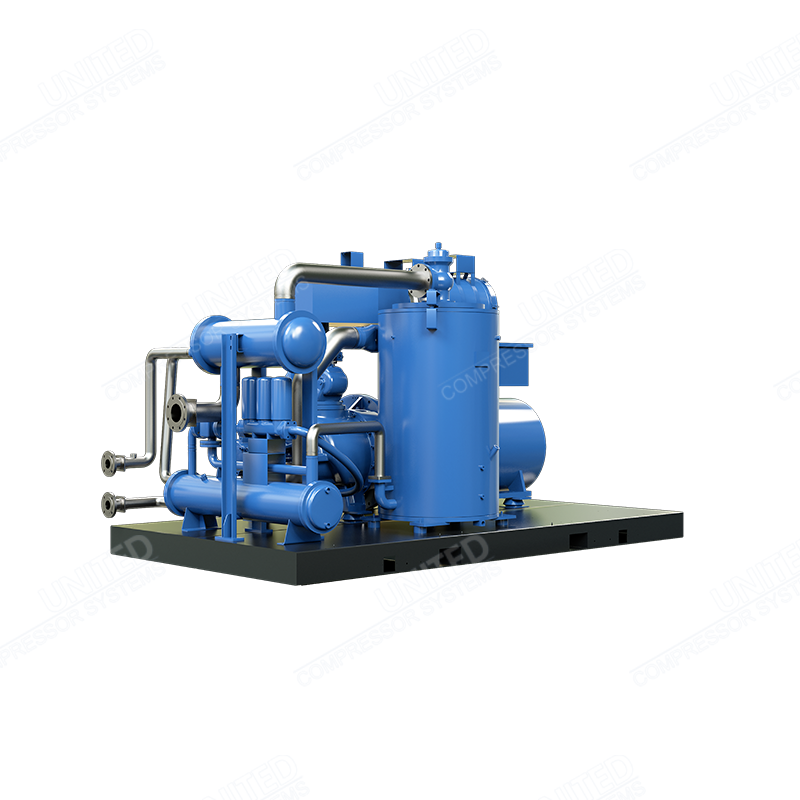

High-Efficiency Energy-Saving Air End

·       United air end highly recognized by the air compression industry with its sophisticated design and precision manufacturing.

·       With adopting large diameter and the balanced length-diameter ratio of the screw rotors, the optimized design based on the new 4th generation rotor moulded line subjected to higher-efficiency, so that the contact surface, contact line, leak triangle and hydrodynamic characteristics of rotors could reach the optimal performance, further improved the volume efficiency. This screw rotor then has high adiabatic efficiency and low power consumption.

·       By using imported large-sized heavy-duty bearing and unique bearing layout, at the same time of ensuring the bearing rigidity, the bearing capacity is much improved, service life lengthened, and its high reliability could keep even under the extreme condition.

·       The lip type shaft seal of the spiral groove fits with the shaft sleeve made of high-grade bearing steel, ensuring the wear resistance of the shaft seal and shaft sleeve. The shaft seal has a pumping function with high reliability and leakage resistance.

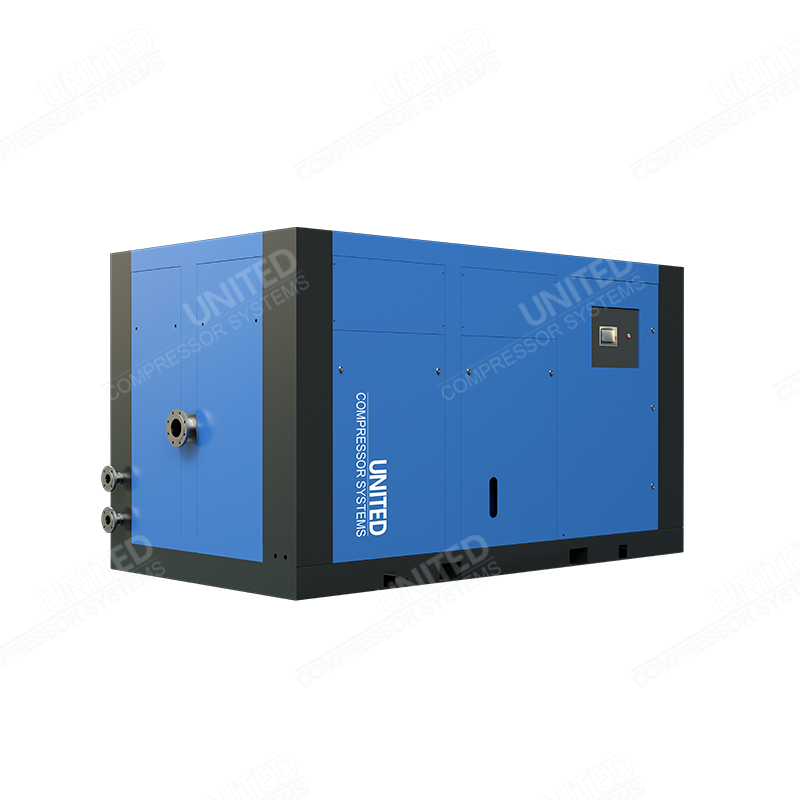

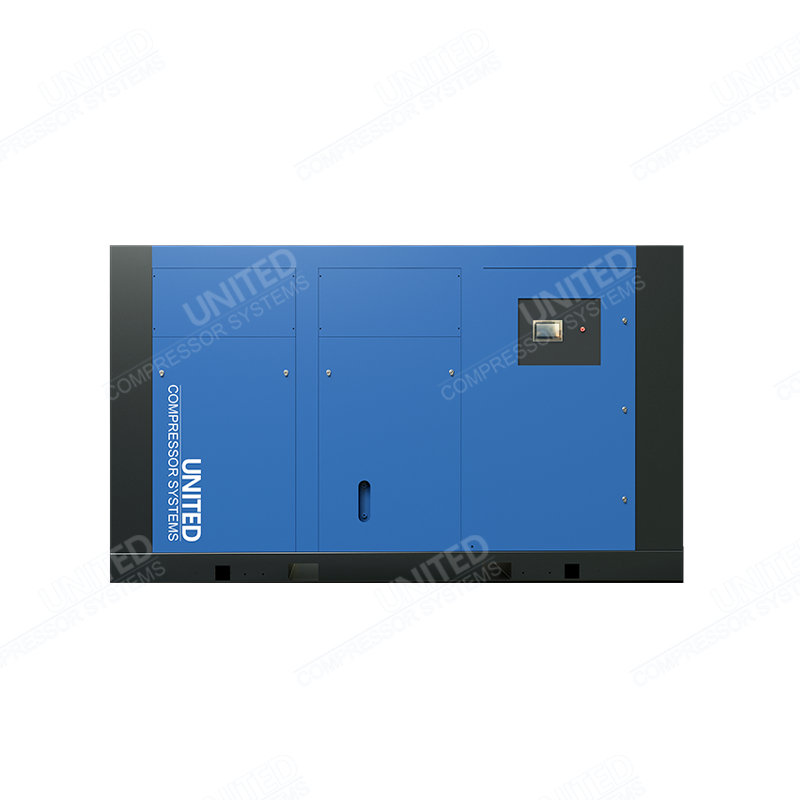

Cabinet Structure Design

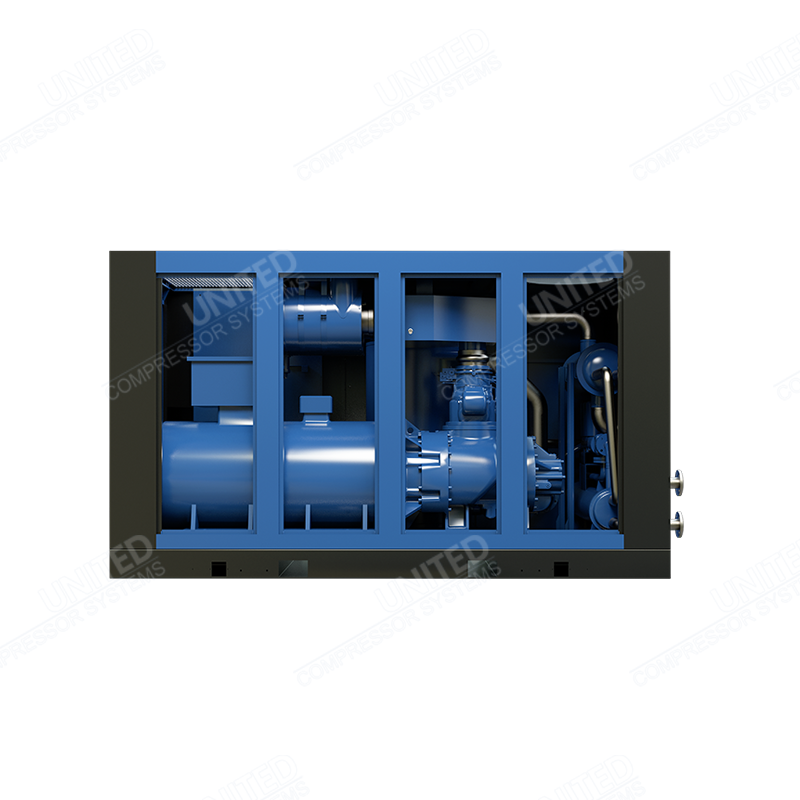

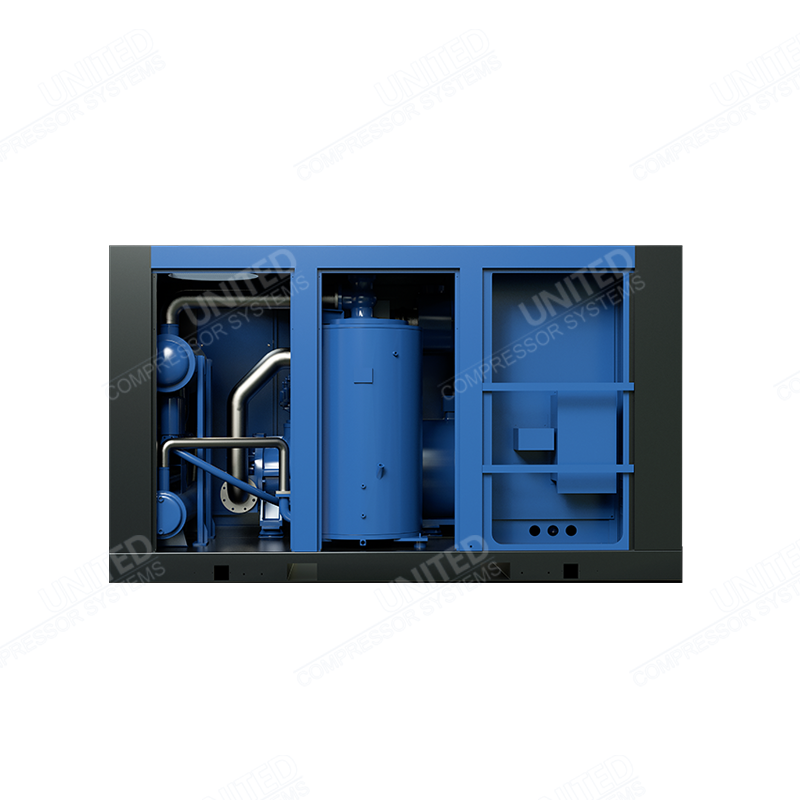

The cabinet structure divided into cooling and heating chambers which means better heat dissipation. All the functional components located in the cooling chamber to extend service life.

The rational layout design obtained national patent which integrating the electrical mechanism, making it easy to operate and could install without foundation on the site. Inside, the cooling and heating chambers do not affect each other and expand the internal space of the cabinet. The optimized internal air circulation ensures comprehensive cooling of all functional components, extending their service lives. On the outside, the closed type removable cabinet with built-in high-quality fire retardant and sound insulation sponges reduces noises effectively.

This structure design not only meets the environmental protection requirements but also easy to service.

Vulnerable Part

High-Efficiency Particulate Air (HEPA) Filtration:

Heavy-duty air filtration system powered by Donaldson USA, with filtration accuracy up to 99.9% for particles greater than 3μm. Suitable for all kinds of heavy dust environments.

Oil Filter:

Donaldson oil filters, high grade of clean filtration, effectively protect the safe operation of the air end bearing, extend the service life of the air end.

Oil and Air Separation System:

Euro design efficient oil and air separation core, glass fibre filter material, long life, more efficient, no need for frequent replacement. The aggregate separation core and the oil return device work together, recover and recycle the lubricating oil effectively, avoiding oil over-spraying, and ensuring the oil content of the compressor exhaust ≤2ppm.

All New Temperature Control and Oil Filter Combination Valves

This patent awarding design integrates the temperature control and oil filter valves which makes the internal piping connection more concise, and fewer leakage points that reduce the occurrence rate of fault. More importantly, it further decreases the pressure drop, achieve more energy-saving and avoid obstacles like tube vibration fracture and leakage in the separated installation of the oil filter base and temperature control value.

Temperature Control Valve

Powered by AMOT of the UK

Accurately controls the oil return temperature at 65°C. If the oil return temperature too high, the oil film will damage and results in oil deteriorate, cooling and sealing degrade, also easily to carbon deposit; if the oil temperature is too low, the water will separate from the air, and the oil will emulsify and deteriorate, affecting the service life of the air end. Therefore, the temperature control value is the critical assurance of stable operation of our compressor.

EPC Intelligent Control System

UNITED Compressors equipped with an Electronic Pressure Controller (EPC) to guarantee the automatic intelligent operation of the machine. Through examing of exhaust pressure, temperature and other sensor data, the inlet valve controls the exhaust pressure between the upper and lower limits of the preset pressure to output stable pressure. When compressor idling too long, the system will automatically shut down and restart when the air supply is requested, not only outputting constant pressure but also reaching the energy saving. Meanwhile, the system may rapidly diagnose all field faults during the operating process, furthest ensuring the reliable operation of the compressor and extending the service life.

Local Control

·       The display language available in English and Chinese, soft-touch buttons, and the menu operation is intuitive, rapid and convenient.

·       User may preset and control the delay time of star-delta switching, starting, loading, shutdown, overpressure and others during the operation.

·       Allow user to view and manage field faults.

·       User may store and search history faults through classified types and occurrence times.

·       Internal calendar with accurate timing and allow adjustment.

·       User may accumulate and store the operating time, loading time, unloading time, and filter service time.

·       User may check all preset parameters and cumulative time at any time during operation.

·       User may modify and store parameters to preset when required.

Linkage Control

User may set 1 compressor as the central unit and others as the auxiliary or standby units (maximum 16 units) to constitute the linkage control of many compressors, assuring the economic and stable air supply, and may automatically adjust the start/stop sequence of each compressor by employing EPC and balance the accumulated working time of each compressor.

Remote Control

The distributed control system (DCS) remotely controls the startup, shutdown, fault output and early warning signal through passive dry contacts.

Master Computer Control

·       The master computer remotely interlock-controls two units or more of compressors, collects and displays field signals, coordinates control and computer operation. Through the setting of master computer parameters, the user may obtain the comprehensive management of the compressor units at any time, to receive stable compressed air within the set pressure range.

·       Acquire and display much field data

·       Vivid graphical interfaces

·       Monitoring the operating status of equipment

·       Records essential data to the database

·       Automatically generate data history report for later analysis

·       Setting of operating parameters of the compressor controller

·       Trend curves of pressure, temperature and other parameters

·       Real-time and history alarm

·       The operating is permissions secured. Require password to essential operations.

·       Single compressor unit test

·       Maintenance or replacement reminder of vulnerable compressor parts

* UNITED COMPRESSOR provides a variety of PLC system centralized control schemes according to the actual needs of users, effectuates man-machine interface through IPC, LCD and configuration software, and communicates with DCS in the user system to remote monitoring, which has the advantages of multi unites control and strong independent development ability.
